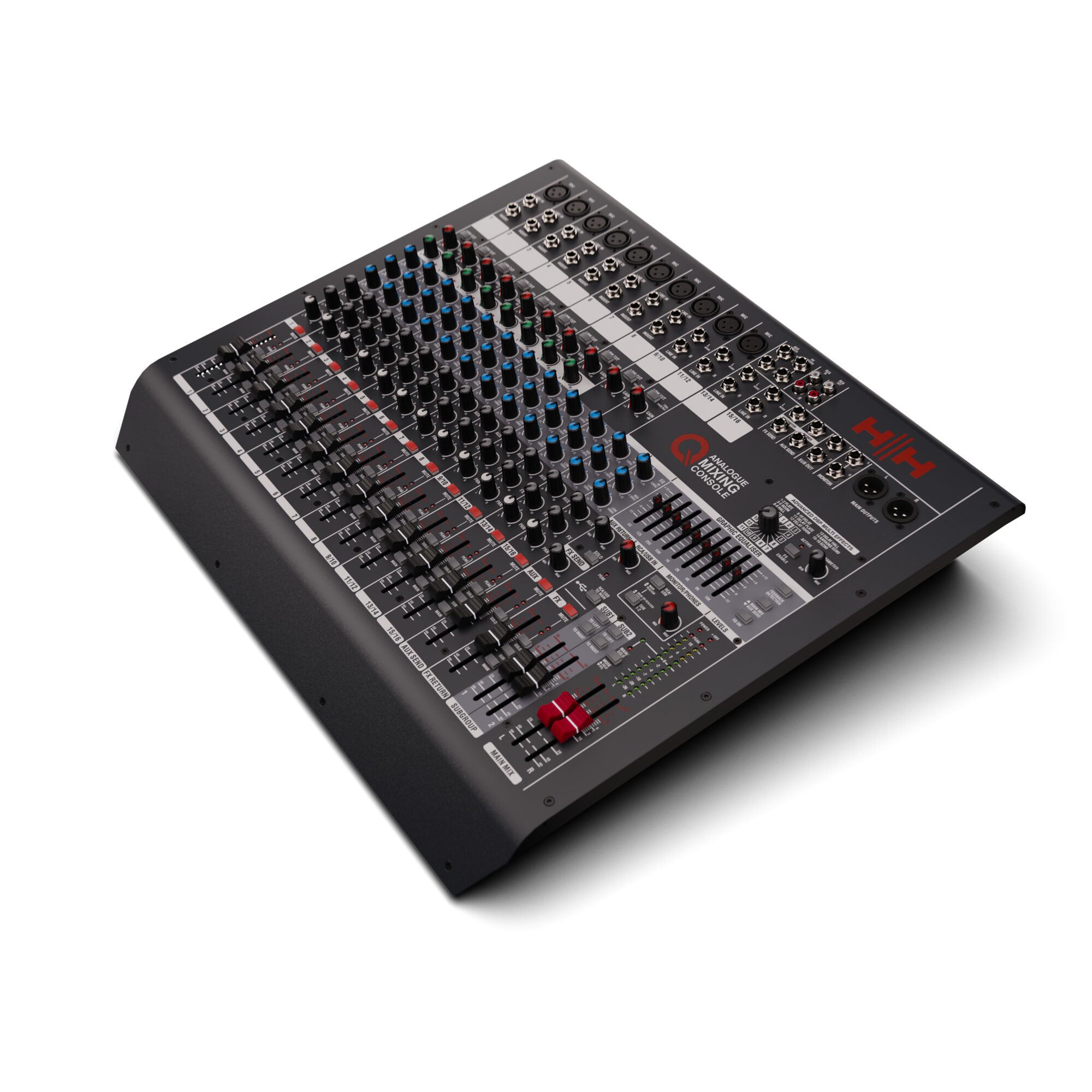

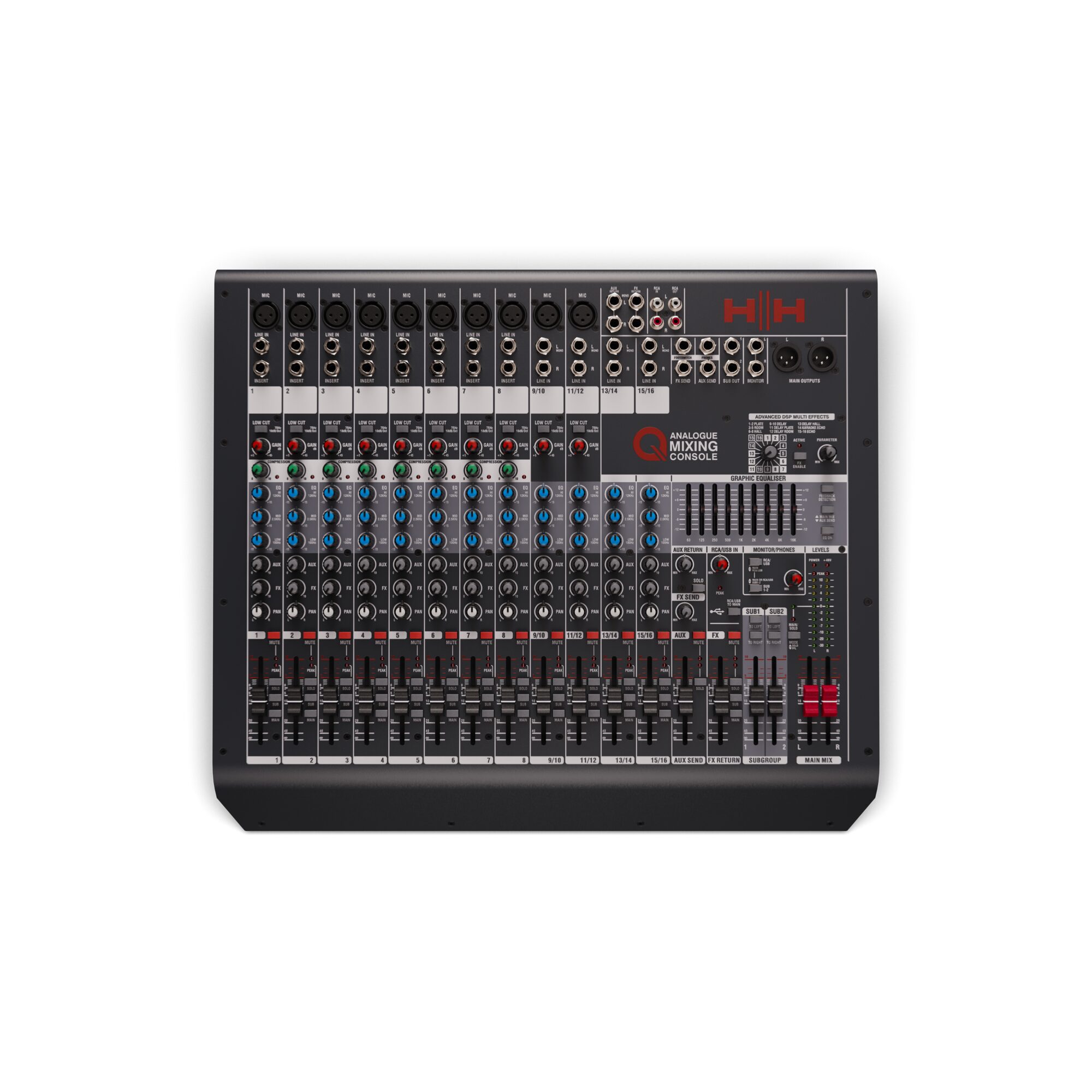

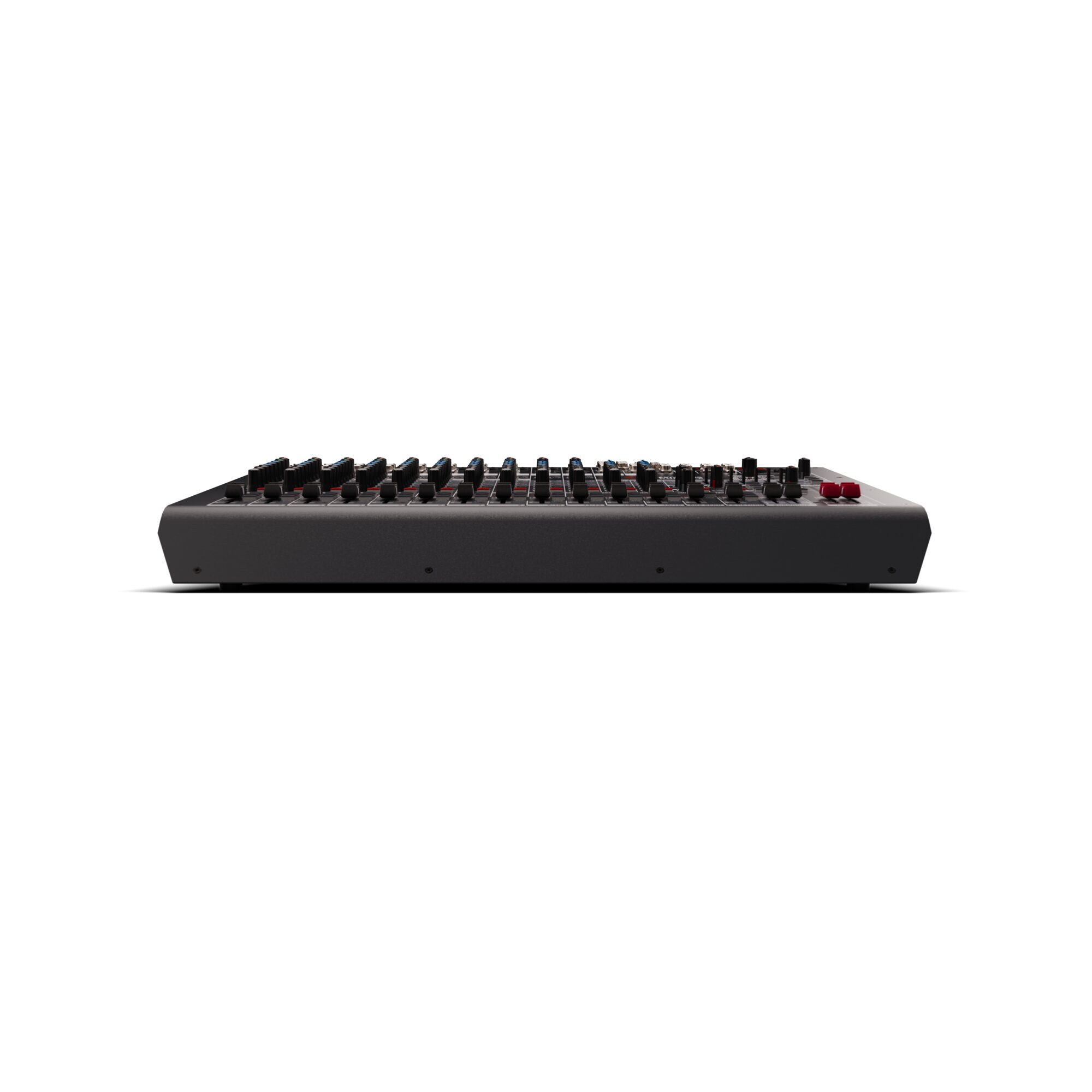

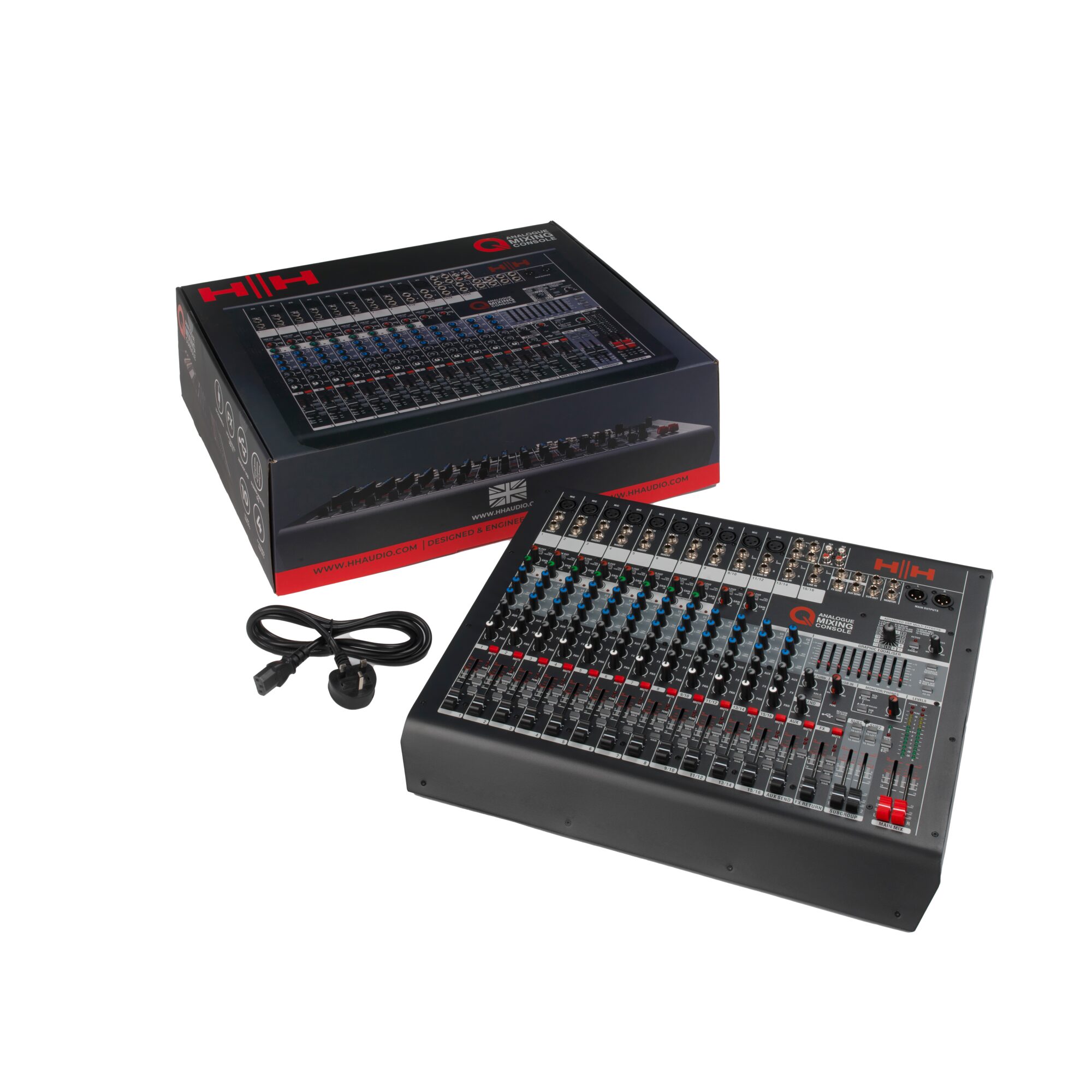

HH Audio Q Series Q16FX 16-Channel Analogue Mixer with FX, Compression & USB – Black

Original price was: £419.00.Current price is: £398.05.

Save £20.95

• 16-channel analogue mixer with 10 mic inputs and stereo line channels • Single-knob compressors on channels 1–8 for dynamic control • 3-band EQ with low cut filter for detailed sound shaping • 16 DSP effects and 9-band graphic EQ with feedback detection • 2-in/2-out USB interface with subgroups, aux sends and comprehensive monitoring

IN STOCK
Includes 3 year warranty

Get it Wed 9th September - FREE Next Day Delivery

Order within 16h 42m 26s
Compare

The Q16FX is a 16-channel analogue mixing console designed and engineered in the UK. The Q16FX consists of 16 input channels: 10 mono channels with microphone inputs utilising low-noise microphone preamps plus a line-in option on each channel alongside 4 stereo line input channels perfect for electric pianos, synthesizers, drum machines, audio from external media players or any other line level sources.

Channels 1 to 8 feature an easy-to-use single-knob compressor giving you full control over the dynamic range of your input sources. A low cut at 75Hz plus a 3-band EQ is available on each channel allowing you to shape the tone of individual sound sources helping you to create a beautifully balanced mix.

16-high-quality DSP effects offer even more options for your audio productions with multiple reverbs, delays and echoes to choose from. The 9-band graphic EQ with feedback detection allows you to grasp the sound of your mix as a whole and adjust accordingly before sending it to front of house.

The Q16FX also offers 2 Subgroups to give you further control, allowing you to adjust the level of the channels routed to each group with ease. 2in/2out USB functionality makes the Q16FX the perfect tool for recording performances, podcasts, and music production.

All of this combined with comprehensive monitoring, 2 auxiliary sends, RCA in and out, global phantom power, pan on each channel, and a 12-point LED meter for your main mix all housed in a robust chassis make the Q16FX a complete portable powerhouse for traveling musicians and engineers alike.

Additional information

Weight9.70 kg
Dimensions51.00 × 58.50 × 18.50 cm
Colour

Black

Length

510

Depth

185

Width

585

Pack Weight

9.7

Line Inputs Mono

8 x ¼” 6.3mm TRS CH1-8

Line Inputs Stereo

2 x Stereo ¼” 6.3mm TRS CH13-16

Mic Inputs

10 x XLR CH1-12

EQ

3 band (±15dB), Low 100Hz, Mid 2.5kHz, High 12kHz per channel

Compressor

2:1 ratio 9dB makeup gain, -8dBu input threshold (max compression, Ch1-8)

Monitors

Stereo ¼” 6.3mm TRS Sockets

FX Send

Mono ¼” 6.3mm TRS

Phones

Mono ¼” 6.3mm TRS

Effects

16 Reverb and delay effects with enable switch and parameter control.

USB Audio

Inputs/Outputs: 2-in/2-out, 24-bit, Sample Rate 48kHz

Main Outputs

Balanced Stereo XLR

Sub Outputs

2 x ¼” 6.3mm TRS Sockets

Aux Send

Mono ¼” 6.3mm TRS

Series

Q Series
